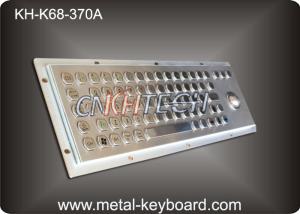

USB Self - Service Terminal Metal Computer Keyboard with Trackball
KH-K68-370A
SIZE: 370x110 mm (Front panel)
Product Description
• Rugged stainless steel panel mount keyboard, 67 Keys PC-Keyboard Standard Layout with 3 buttons for functions direction of trackball, IP65 dust-proof,water-proof,Vandal-proof Performance, full-travel(2.0mm) keys and integrated laser trackball
Product Features:
• 70 Keys PC-Keyboard Standard Layout
• Built in 25mm laser trackball and 3 mouse buttons
• Electro Carbon-on-Gold PCB key switch technology
• Laser engraved characters for excellent durable.
• Rear aluminum panel w/hole mounting solution
• Interface PS/2, USB available
• All international language lay-out are optional.
Technical Information
| Front-Side Material | Stainless Steel |
| Back-Plate Material | Brushed & Silver Oxidized Aluminum |
| Dimension(Front Panel) | 370 x110 mm |
| Mouse Information | Ø25mm Stainless Steel Trackball |
| Interface | PS/2, USB, Others |
MECHANICAL DATA
• Key top style: Protuberant rectangular keys, laser engraved & etched graphics & raised braille on keys are available
• Stroke travel: 2.0mm
• Switch life: more than 1 million of per key
• It is compatible to WINDOWS98/ME/2000/2003/XP/Vista/ Linux, Unix, Mac OSX
• Customized layout is available
• N.W.:1.6 KGs
ELECTRICAL DATA
• Supply Voltage:5.0V DC±5%
• Current Rating: appr. 30mA
• EMC Standard: It is compliance with the council EMC directive 2004/108/EC
• EN55022: 2006+A2:2010
• EN55024: 1998+A1:2001+A2:2003
• Lifespan > 5 years
ENVIRONMENTAL ADAPTABILITY
• Operating temperature:-20°C to +60°C
• Storage temperature: -30°C to +70°C
• Operating RH: 20-95%
• Atmospheric pressure: 60-106Kpa.
RELIABILITY
• Compliant RoHS , CE and FCC
• Protection Level: IP65(front panel)
• Vandal resistant: IK10
• Key Lifespan >10 million actuations
• MTBF >50,000H
• MTTR <30min
